Quick Details

  • D/C: 2016
  • Package: 100PCS/CARTON
  • Model Number: BPI-M1
  • Type: Drive IC, Drive IC
  • Brand Name: Banana pi
  • Place of Origin: Guangdong, China (Mainland)
  • CPU: A20 ARM Corte -A7 Dual-Core
  • Memory (SDRAM: 1GB DDR3
  • USB 2.0 Ports: 2
  • OS: Android 4.2,Firefox OS and Linux etc. OS
  • Weight: 48g
  • Size: 92mm*60mm
  • Products Status: Stock

Packaging & Delivery

Packaging Details standard packages
Delivery Time Shipped in 3 days after payment

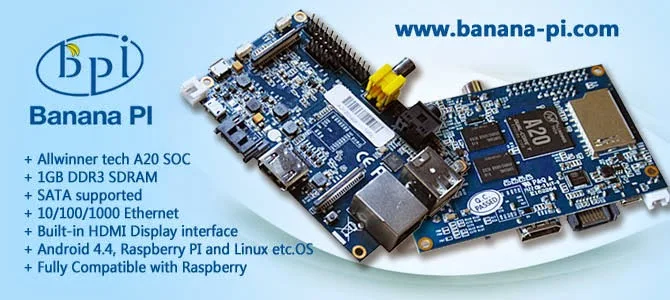

Development Board Banana PI Better than Raspberry PI and cubieboard Support Debian linux, Ubuntu linux,scratch



with Allwinner A20 CPU, 1 GB Memory, Gigabits Ethernet. You can do what ever you want







OverView:



The Banana Pi use Linux-kernel based operating systems. Debian GNU/Linux, Iceweasel, Calligra Suite and Python are planned to be bundled with the Raspberry Pi. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface.



Product information:



CPU

A20 ARM Cortex™-A7 Dual-Core

GPU

ARM Mali400MP2Complies with OpenGL ES 2.0/1.1

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage



SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk

Onboard Network

10/100/1000 Ethernet RJ45,optional WIFI

Video Input

A CSI input connector allows for the connection of a designed camera module

Video Outputs

HDMI, CVBS , LVDS/RGB

Audio Output

3.5 mm Jack and HDMI

Power Source

5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)

USB 2.0 Ports

2 (direct from Allwinner A20 chip)

Buttons

Reset button: Next to MicroUSB connector

Power button: Next to Reset button

Boot button (Optional): Behind HDMI connector

GPIO(2X13) pin

GPIO,UART,I2C bus,SPI bus with two chip selects,

CAN bus,ADC,PWM,+3.3v,+5v,ground.

LED

Power Key & RJ45

Remote

IR (Optional)

OS

Android 4.2,Firefox OS and Linux etc. OS

Interface definition

Product size

92 mm × 60mm

Weight

48g



Gigabit ethernet port, SATA Socket. It can run with Android 4.2.2 smoothly. The size of Banana PI M1 like the credit card,it support 1080P high definition video output, the GPIO compatible with Raspberry Pi and can run the ROM Image directly.





Hardware





Hardware connect sketch map
